Repair and Servicing of HEIDENHAIN ROC 513 Absolute Encoders

Posted on by admin
06 Aug
  • Manufacturer: HEIDENHAIN
  • Series / Model: ROC 513 / ROC 513 EnDat / SSI (e.g., ROC 513 512, ROC 513 2048)
  • Device Type: Absolute Rotary Encoder with Integral Bearings

HEIDENHAIN ROC 513 absolute encoders are high-precision position feedback devices widely deployed in CNC machine tools, direct drives, robotics, and servo systems. They combine absolute position communication via serial EnDat (or SSI) protocols with high-resolution 1 Vpp incremental sinusoidal output signals.

Due to harsh continuous operation, oil or coolant ingress, mechanical vibration, or power surges, these encoders can suffer from EnDat communication faults, 1 Vpp signal distortion, bearing wear, or LED light source degradation.



What we repair on HEIDENHAIN ROC 513 encoders:

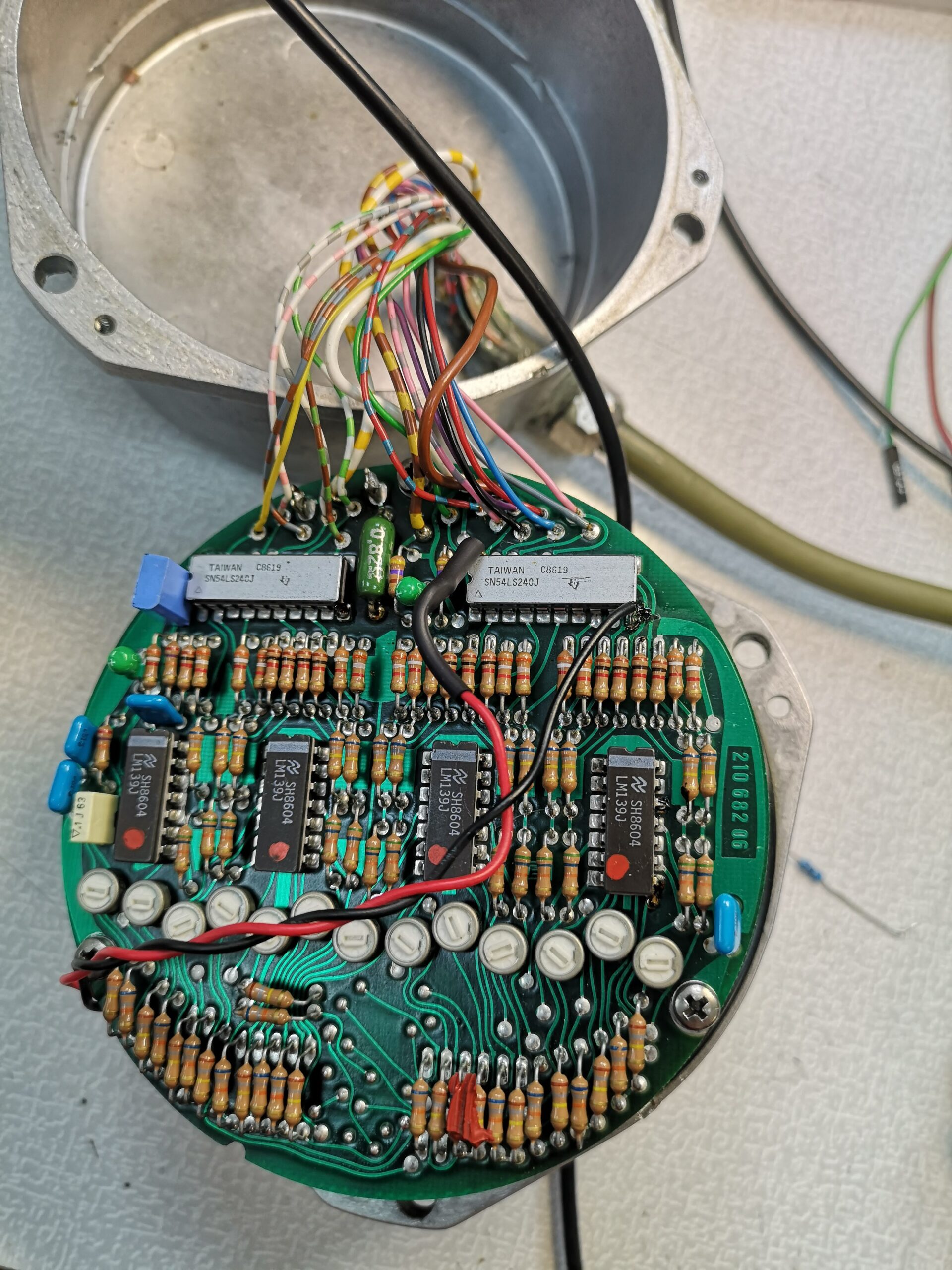

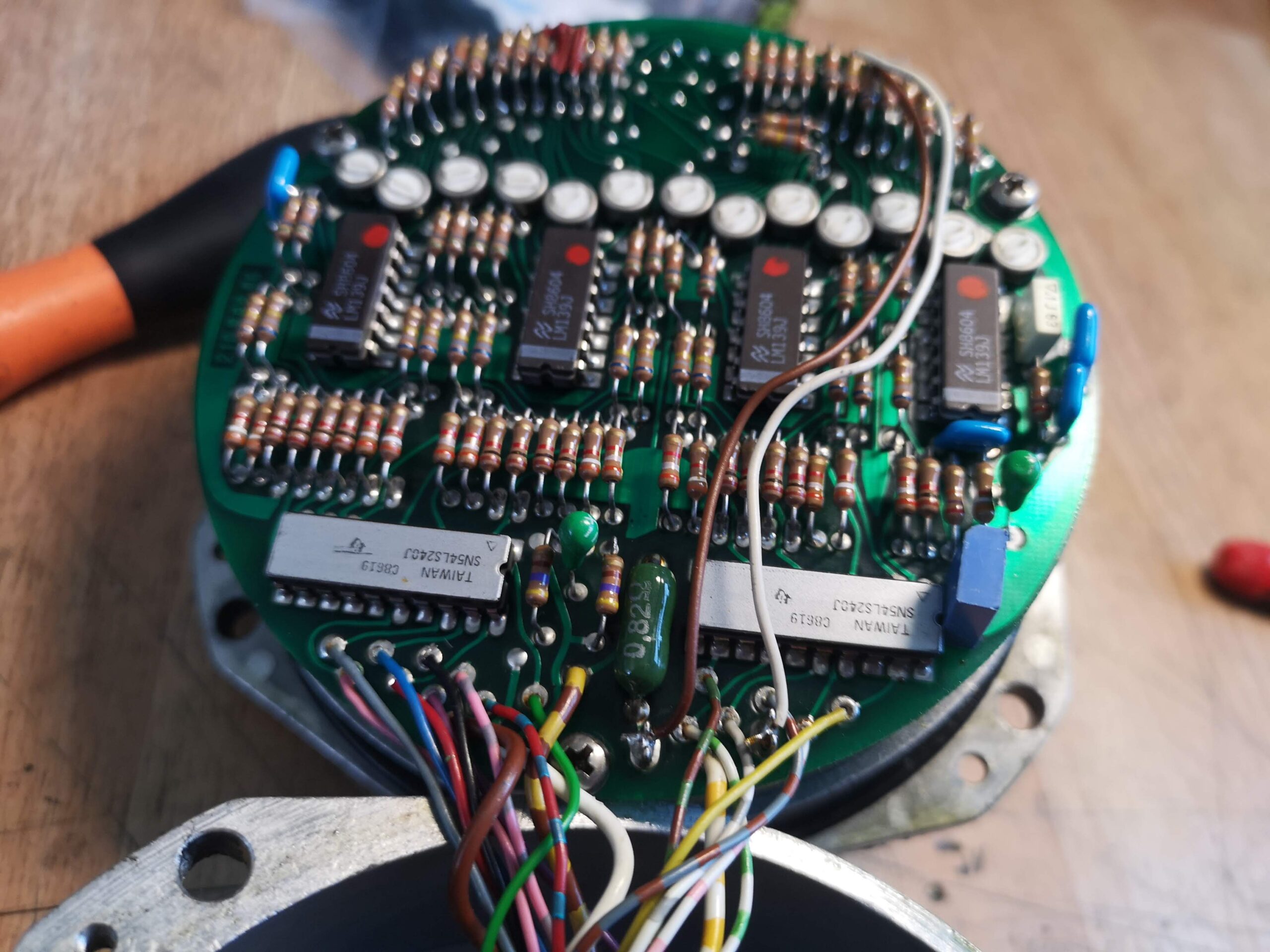

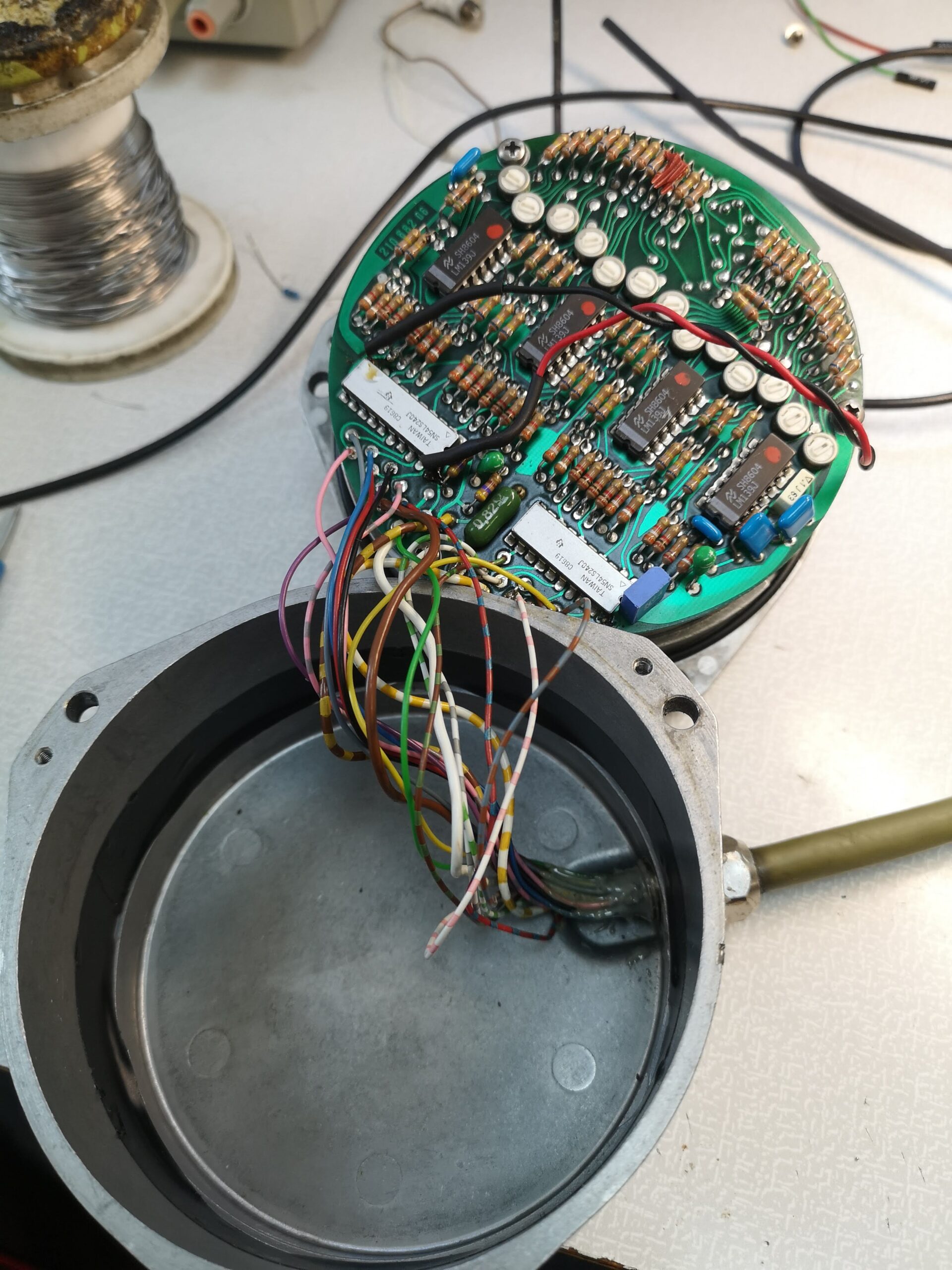

  • EnDat / SSI Interface & Electronics: Component-level repair of RS-485/EnDat transceivers, onboard voltage regulators, and microprocessor control circuitry.

  • 1 Vpp Analog Signal Conditioning: Calibration and restoration of sine/cosine amplitude, quadrature phase offset, and DC balance.

  • Optoelectronic Assembly: Precision cleaning of glass optical discs, alignment, and replacement of degraded IR emitter diodes.

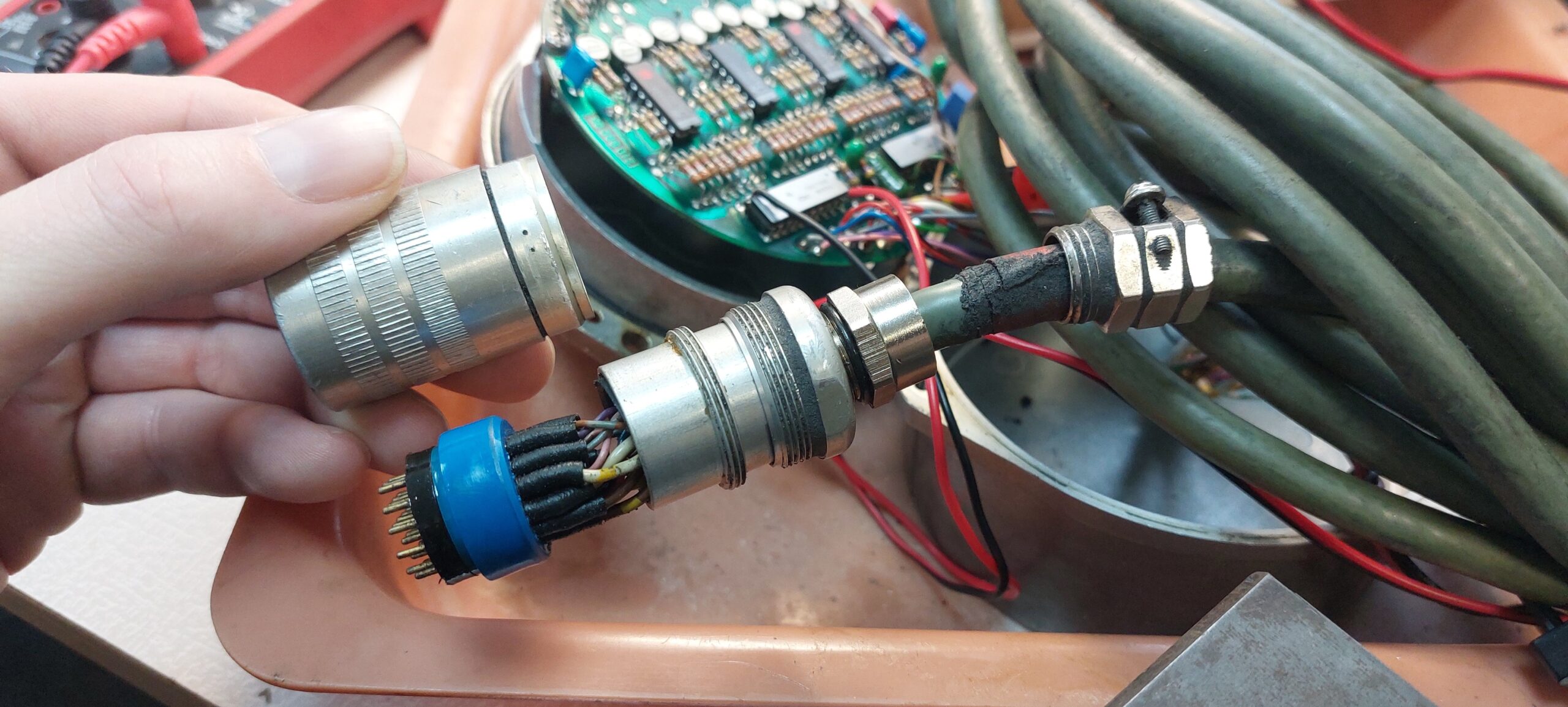

  • Connector & Harness Repair: Replacement of damaged M23/M12 integral connectors and flying lead cables.

Benefits of our repair service:

      • Significant Cost Reduction: Servicing your original ROC 513 unit avoids the high expense of buying new OEM replacement encoders.

      • Verified EnDat Signal Integrity: Every repaired unit undergoes thorough signal testing to guarantee flawless communication with Heidenhain, Siemens, or Fanuc CNC drives.

      • Seamless Reinstallation: Preserves exact mechanical mounting dimensions and electrical interfaces with no cabinet or motor adaptations required.
